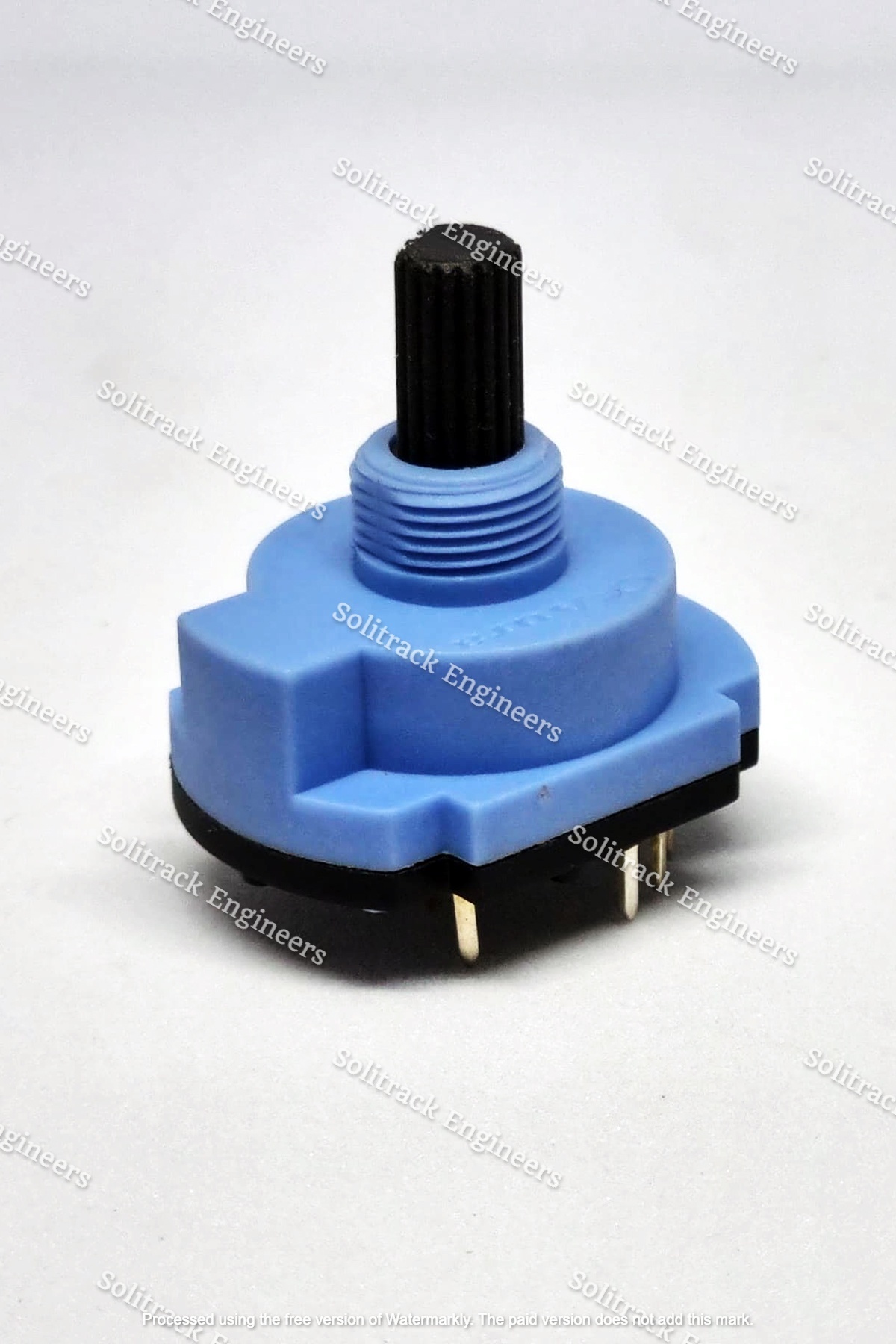

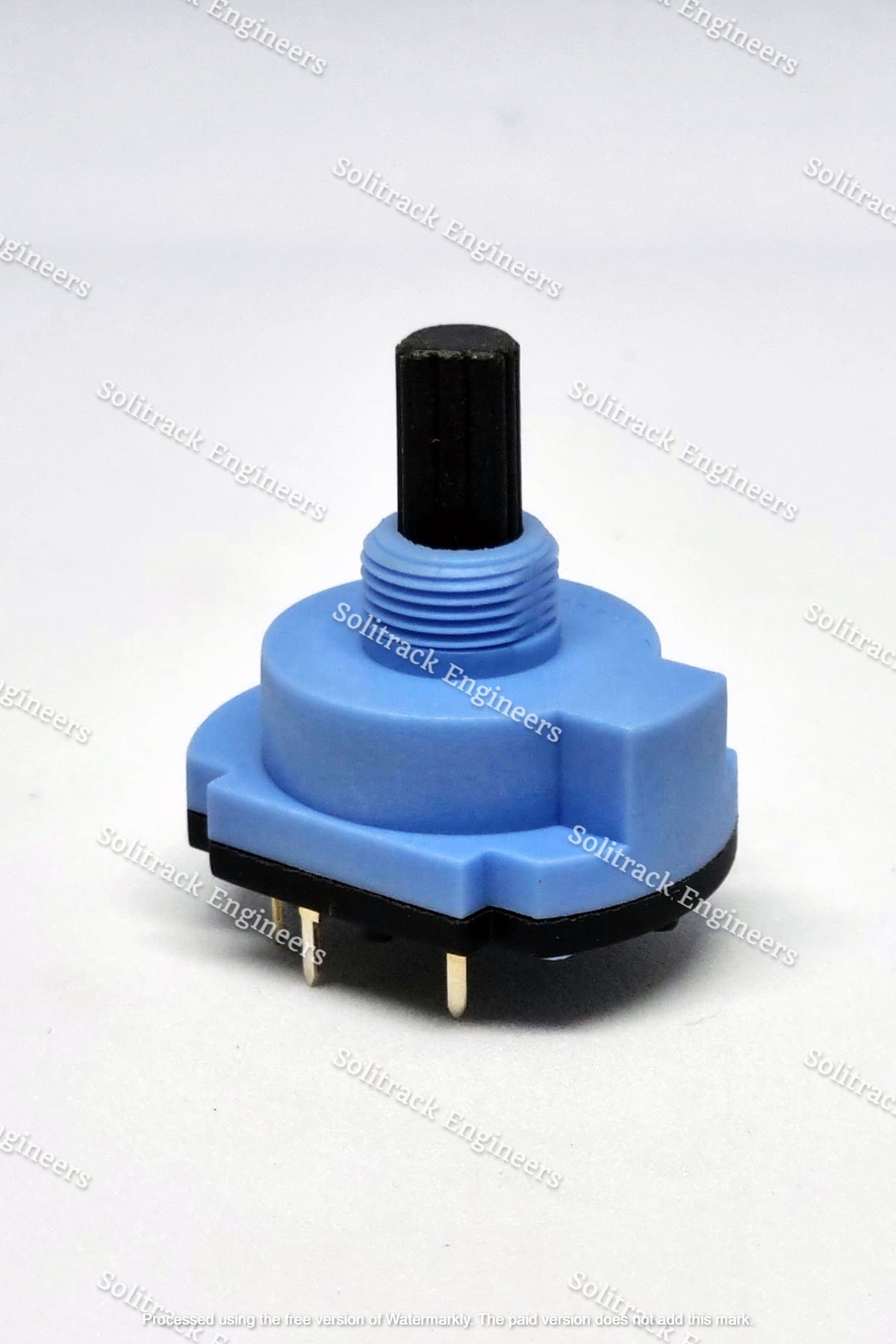

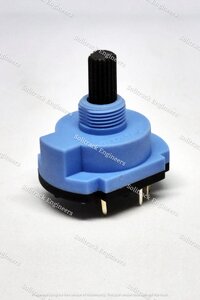

20 mm 5 Step Full Rotation

Name: 20 mm 5 Step Full Rotation
Brand: SOLITRACK ENGINEERS
Price: 9 INR
Availability: InStock

Price 9 INR/ Unit

Get a Price/Quote

MOQ : 20000 Units

20 mm 5 Step Full Rotation Specification

Mechanical Life
>10,000 cycles

Finish Type
Smooth/Glossy

Number of Module
Single

Circuit Type
Single Circuit

Temperature Range
-10C to +60C

Protection Level
IP40

Response Time
Instantaneous

Rated Voltage
250V AC

Automation Grade
Manual

Max. Current
1A

Product Type
5 Step Full Rotation

Material
Nylon

Insulation Resistance
100M at 500V DC

Contact Resistance
50m

Max. Voltage
220 Volt (V)

Operating Temperature
-10C to +60C

Stoke
5 Steps

Size
20mm

Color
Blue Black

Weight
Approx. 12g

Mounting Type
Panel Mount

Current Rating
1A

No Of Poles
Single Pole

Shaft Type
Round

Standards Compliance
RoHS compliant

Flame Retardancy
UL94V-0 housing

Contact Material
Silver Alloy

Shaft Length
15 mm

Stopper
Full Rotation-No Stop

Switch Type
Rotary Switch

Torque
Standard light rotary torque

Panel Cutout Size
20 mm

Termination Type
Solder Lug

Environmental Protection
Moisture resistant

Application
Electronics, instrumentation, test equipment

Rotation Angle Per Step
72

About 20 mm 5 Step Full Rotation

Presenting the 20 mm 5 Step Full Rotation Rotary Switch-a must-have solution for uncommon and illustrious electronic applications. Engineered with a valorous design, this rotary switch offers full rotation without a stopper and features five ephemeral, precise steps for superior control. With solder lug termination, a robust silver alloy contact, and smooth glossy finish, it excels in reliability and efficiency. Boasting RoHS certification, UL94V-0 flame retardancy, and IP40 moisture resistance, this switch is ideal for instrumentation, test equipment, and advanced electronics. Markdown your requirements with this lightweight (approx. 12g) marvel, built for over 10,000 cycles.

Optimized Usage in Sophisticated Applications

The 20 mm 5 Step Full Rotation Rotary Switch is uniquely tailored for electronic, instrumentation, and test equipment applications, offering distinct advantage in modular designs and control panels. Its simple panel mount installation and manual operation ensure uncommon precision and reliability. The switch delivers instantaneous response across five clearly defined steps, supporting up to 250V AC, making it an illustrious choice for engineers seeking stability, versatility, and an illustrious track record in mission-critical environments.

Packaging, Delivery, and Sample Policy That Adds Value

Your valued order for the 20 mm Rotary Switch is rated for secure and swift dispatch. Products are fastidiously packaged to ensure immaculate condition upon arrival. Standard delivery times are brief, with most items handed over to logistics partners within days of order confirmation and promptly dispatched nationwide. Sample requests are welcomed, and are processed efficiently for your evaluation. Rely on seamless procurement and reliable support-tailored for discerning clients across India.

FAQ's of 20 mm 5 Step Full Rotation:

Q: How is the 20 mm 5 Step Full Rotation Rotary Switch used in electronic applications?

A: This rotary switch is integrated into control circuits, instrumentation panels, and test equipment, providing users with five precise position selections and robust, reliable switching power up to 1A at 250V AC.

Q: What makes the switch's construction uncommon or illustrious compared to similar products?

A: The illustrious engineering includes a full rotation design with no stopper, high-quality silver alloy contacts, a flame-retardant nylon body, and moisture resistance, resulting in longer mechanical life and higher reliability.

Q: Where should the rotary switch ideally be installed?

A: It is best installed in electronics, test benches, and industrial instrumentation panels, where precise stepped control is essential. The panel mount and 20 mm cutout facilitate secure and flexible installation.

Q: What is the process for ordering and receiving samples?

A: Simply request a sample during your inquiry. Samples are dispatched swiftly, securely packaged, and handed over to logistics partners for fast delivery, allowing you to assess the product before placing bulk orders.

Q: What are the primary benefits of using this rotary switch?

A: Key advantages include its moisture resistance (IP40), flame retardancy (UL94V-0 housing), compliance with RoHS standards, smooth operation, and durable construction supporting over 10,000 mechanical cycles.
